CLR-16-10-L-P-A linear/swivel clamp
CLR-16-10-L-P-A linear/swivel clamp
0 in stock
SKU
MFG 535436
CLR-16-10-L-P-A
MFG 535436

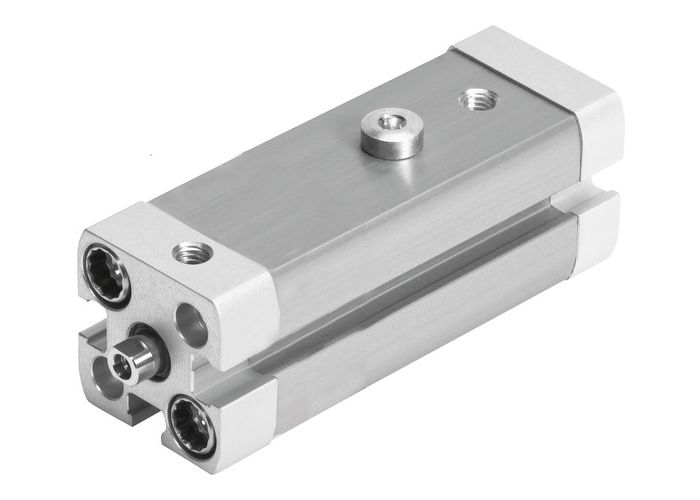

linear/swivel clamp CLR-16-10-L-P-A Clamping system with linear and swivel motion, 90° to the left Total stroke=20 mm, Piston diameter=16 mm, Piston rod thread=M4, Swivel angle=90 deg +/- 4 deg, Clamping stroke=10 mm
| Piston diameter | 16 mm |
|---|---|
| Piston rod thread | M4 |
| Total stroke | 20 mm |
| Rotation angle | 90 deg +/- 4 deg |
| Clamping stroke | 10 mm |
