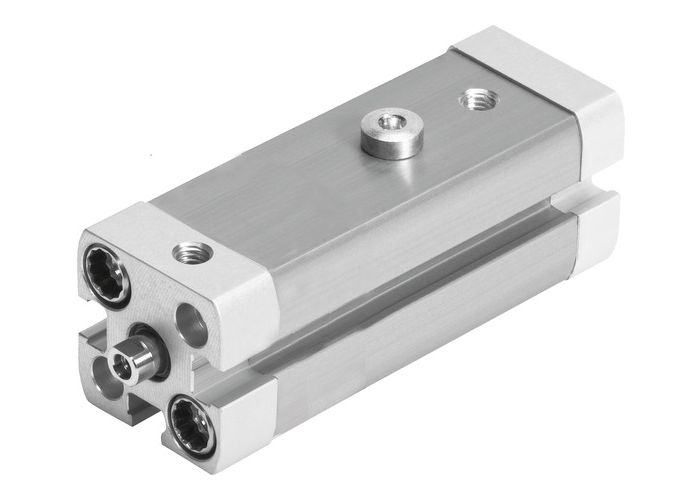

CLR-20-10-L-P-A linear/swivel clamp
CLR-20-10-L-P-A linear/swivel clamp
0 in stock
SKU
MFG 535440
CLR-20-10-L-P-A
MFG 535440
linear/swivel clamp CLR-20-10-L-P-A Clamping system with linear and swivel motion, 90° to the left, standard port pattern per ISO 21287 Total stroke=22 mm, Piston diameter=20 mm, Piston rod thread=M6, Swivel angle=90 deg +/- 3 deg, Clamping stroke=10 mm
| Piston diameter | 20 mm |
|---|---|
| Piston rod thread | M6 |
| Total stroke | 22 mm |
| Rotation angle | 90 deg +/- 3 deg |
| Clamping stroke | 10 mm |
