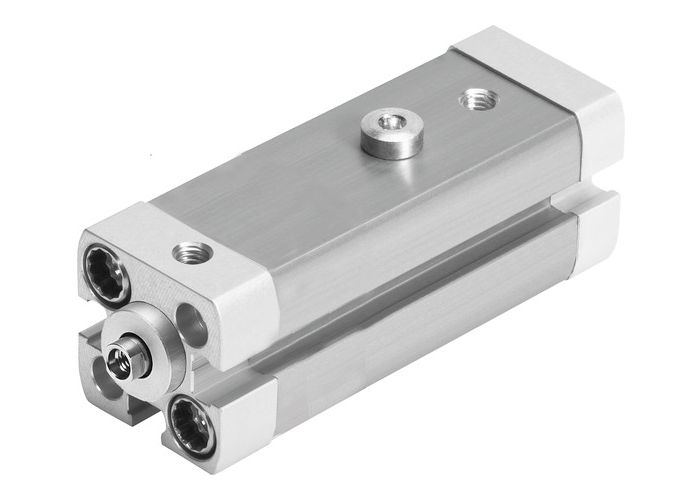

CLR-25-10-R-P-A-K11-R8 linear/swivel clamp
CLR-25-10-R-P-A-K11-R8 linear/swivel clamp
0 in stock
SKU
MFG 535483
CLR-25-10-R-P-A-K11-R8
MFG 535483
linear/swivel clamp CLR-25-10-R-P-A-K11-R8 clamping system with linear and swivel motion 90 degrees to the right. standard hole pattern according to ISO 21287. With dust and weld spatter protection. Total stroke=23 mm, Piston diameter=25 mm, Piston rod thread=M6, Swivel angle=90 deg +/- 3 deg, Clamping stroke=10 mm
| Piston diameter | 25 mm |
|---|---|
| Piston rod thread | M6 |
| Total stroke | 23 mm |
| Rotation angle | 90 deg +/- 3 deg |
| Clamping stroke | 10 mm |
