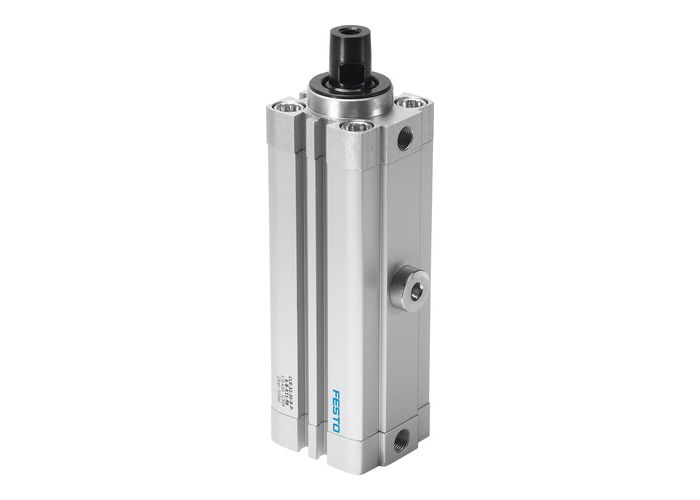

CLR-32-20-L-P-A-B-K11-R8 linear/swivel clamp
CLR-32-20-L-P-A-B-K11-R8 linear/swivel clamp
0 in stock
SKU
MFG 535491
CLR-32-20-L-P-A-B-K11-R8
MFG 535491
linear/swivel clamp CLR-32-20-L-P-A-B-K11-R8 clamping system with linear and swivel motion 90 degrees to the left. standard hole pattern according to ISO 21287. With dust and weld spatter protection. Total stroke=38 mm, Piston diameter=32 mm, Piston rod thread=M8, Swivel angle=90 deg +/- 2 deg, Clamping stroke=20 mm
| Piston diameter | 32 mm |
|---|---|
| Piston rod thread | M8 |
| Total stroke | 38 mm |
| Rotation angle | 90 deg +/- 2 deg |
| Clamping stroke | 20 mm |
