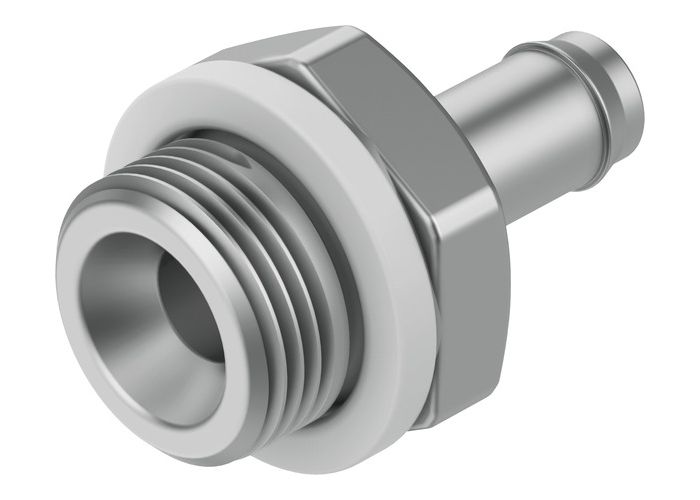

CN-1/8-PK-6 barbed fitting
CN-1/8-PK-6 barbed fitting
0 in stock
SKU
MFG 11946
CN-1/8-PK-6
MFG 11946
barbed fitting CN-1/8-PK-6 For plastic tubing PAN, PUN, PP, PU, PR, with sealing ring Nominal size=5,3 mm, Type of seal on screw-in stud=Sealing ring, Operating pressure complete temperature range=-0.95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Nominal Diameter | 5.3 mm |
|---|---|
| Type of seal on thread | Sealing ring |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Operating pressure for entire temperature range | -0.95 - 10 bar |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
