DAPS-0030-090-RS2-F04-T6 semi-rotary drive
DAPS-0030-090-RS2-F04-T6 semi-rotary drive
0 in stock
SKU
MFG 553193
DAPS-0030-090-RS2-F04-T6
MFG 553193

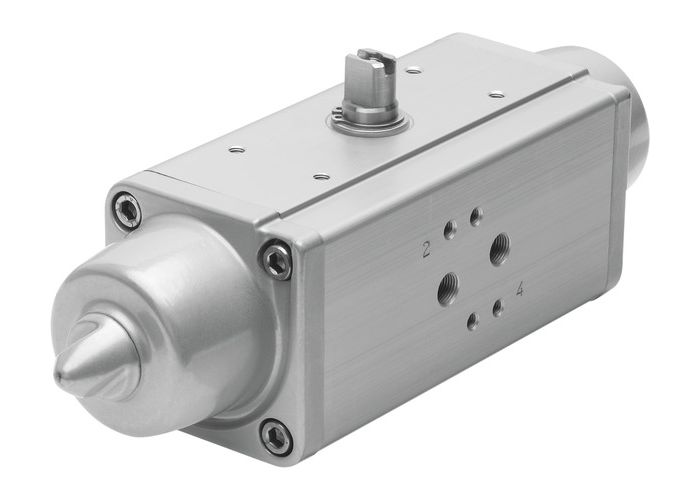

semi-rotary drive DAPS-0030-090-RS2-F04-T6 single-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, low-temperature version. Size of actuator=0030. Flange hole pattern=F04, Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, End-position adjusting range at nominal swivel angle=81 - 91 deg
| Size of actuator | 30 |
|---|---|
| Flange hole pattern | F04 |
| Angle of oscillation | 90 deg |
| End-position adjustment range at 0° | -1 - 9 deg |
| End-position adjusting range at nominal swivel angle | 81 - 91 deg |
