DAPS-0053-090-RS4-F0507-MW semi-rotary drive
DAPS-0053-090-RS4-F0507-MW semi-rotary drive
0 in stock
SKU
MFG 8005029
DAPS-0053-090-RS4-F0507-MW
MFG 8005029

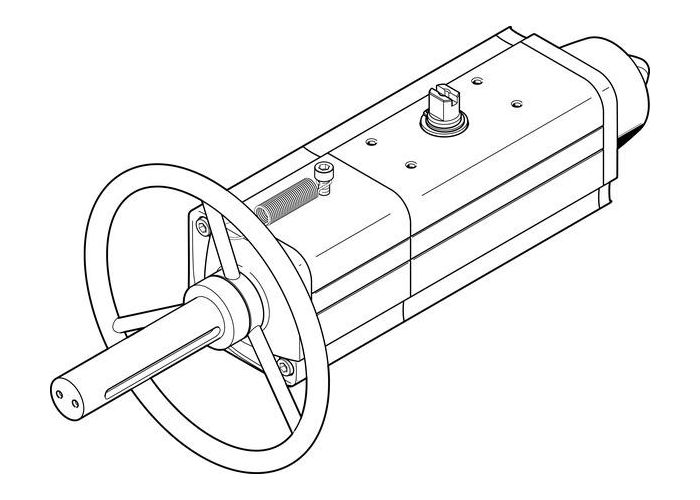

semi-rotary drive DAPS-0053-090-RS4-F0507-MW single-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator=0053, Flange hole pattern=(* F05, * F07), Swivel angle=92 deg, Shaft connection depth=19,3 mm, Note regarding end position setting range=One selectable end position is adjustable
| Size of actuator | 53 |
|---|---|
| Flange hole pattern | (* F05, * F07) |
| Angle of oscillation | 90 deg |
| Shaft connection depth | 19.3 mm |
| Note on the adjustment of the stops | An adjustable stop of your choice is set |
