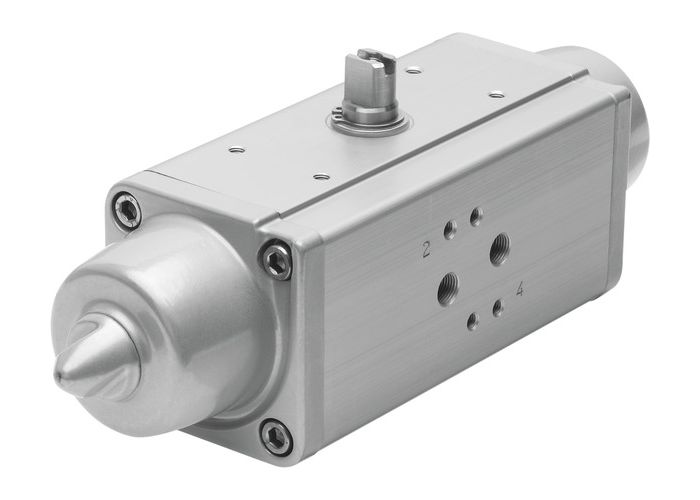

DAPS-0090-090-RS4-F0710 semi-rotary drive
DAPS-0090-090-RS4-F0710 semi-rotary drive
0 in stock
SKU
MFG 533442
DAPS-0090-090-RS4-F0710
MFG 533442
semi-rotary drive DAPS-0090-090-RS4-F0710 Single-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator=0090. Flange hole pattern=(* F07, * F10), Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, End-position adjusting range at nominal swivel angle=81 - 91 deg
| Size of actuator | 90 |
|---|---|
| Flange hole pattern | (* F07, * F10) |
| Angle of oscillation | 90 deg |
| End-position adjustment range at 0° | -1 - 9 deg |
| End-position adjusting range at nominal swivel angle | 81 - 91 deg |
