DAPS-0106-090-R-F0507-MW semi-rotary drive
DAPS-0106-090-R-F0507-MW semi-rotary drive
0 in stock
SKU
MFG 8005002
DAPS-0106-090-R-F0507-MW
MFG 8005002

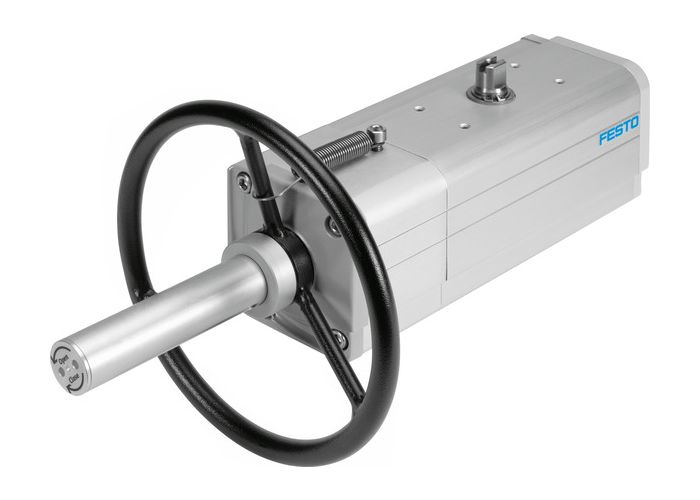

semi-rotary drive DAPS-0106-090-R-F0507-MW double-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator=0106, Flange hole pattern=(* F05, * F07), Swivel angle=92 deg, Shaft connection depth=19,3 mm, Fitting connection conforms to standard=ISO 5211
| Size of actuator | 106 |
|---|---|
| Flange hole pattern | (* F05, * F07) |
| Angle of oscillation | 90 deg |
| Shaft connection depth | 19.3 mm |
| Pneumatic connector in accordance with the standards | ISO 5211 |
