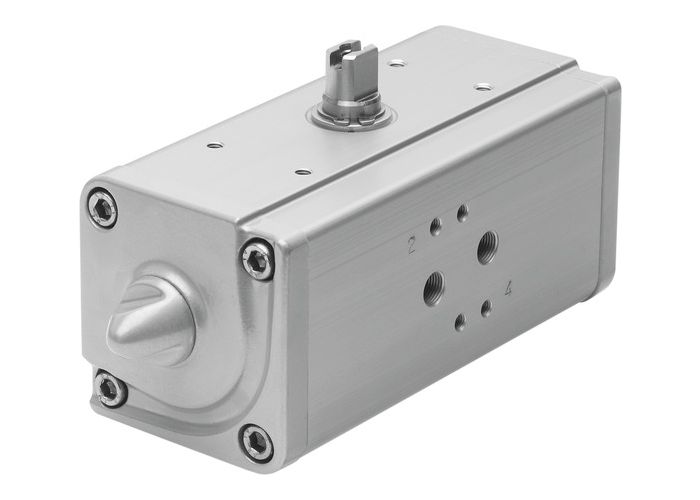

DAPS-0106-090-R-F0507-T6 semi-rotary drive
DAPS-0106-090-R-F0507-T6 semi-rotary drive
0 in stock
SKU
MFG 553176
DAPS-0106-090-R-F0507-T6
MFG 553176
semi-rotary drive DAPS-0106-090-R-F0507-T6 double-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel, low temperature version. Size of actuator=0106, Flange hole pattern=(* F05, * F07), Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, Shaft connection depth=19,3 mm
| Size of actuator | 106 |
|---|---|
| Flange hole pattern | (* F05, * F07) |
| Angle of oscillation | 90 deg |
| End-position adjustment range at 0° | -1 - 9 deg |
| Shaft connection depth | 19.3 mm |
