DAPS-0120-090-RS4-F0507-CR semi-rotary drive
DAPS-0120-090-RS4-F0507-CR semi-rotary drive
0 in stock
SKU
MFG 552890
DAPS-0120-090-RS4-F0507-CR
MFG 552890

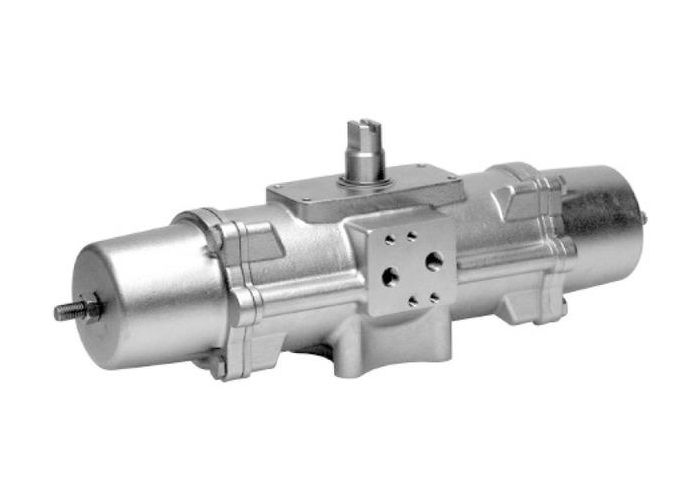

semi-rotary drive DAPS-0120-090-RS4-F0507-CR single-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, stainless steel version. Size of actuator=0120. Flange hole pattern=(* F05, * F07), Swivel angle=90 deg, Shaft connection depth=19,3 mm, Fitting connection conforms to standard=ISO 5211
| Size of actuator | 120 |
|---|---|
| Flange hole pattern | (* F05, * F07) |
| Angle of oscillation | 90 deg |
| Shaft connection depth | 19.3 mm |
| Pneumatic connector in accordance with the standards | ISO 5211 |
