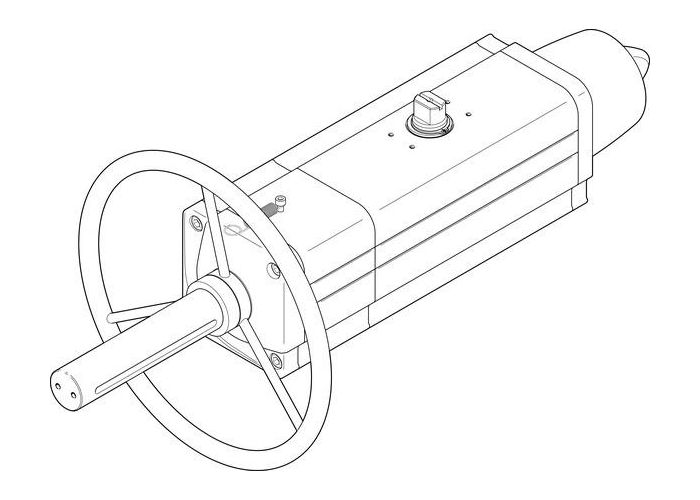

DAPS-0180-090-RS3-F0710-MW semi-rotary drive
DAPS-0180-090-RS3-F0710-MW semi-rotary drive
0 in stock
SKU
MFG 8005040
DAPS-0180-090-RS3-F0710-MW
MFG 8005040
semi-rotary drive DAPS-0180-090-RS3-F0710-MW single-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator=0180. Flange hole pattern=(* F07, * F10), Swivel angle=92 deg, Shaft connection depth=24,3 mm, Note regarding end position setting range=One selectable end position is adjustable
| Size of actuator | 180 |
|---|---|
| Flange hole pattern | (* F07, * F10) |
| Angle of oscillation | 90 deg |
| Shaft connection depth | 24.3 mm |
| Note on the adjustment of the stops | An adjustable stop of your choice is set |
