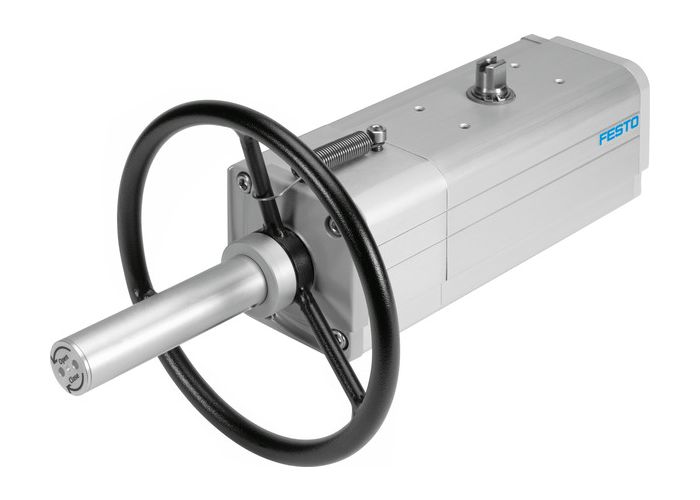

DAPS-0240-090-R-F0710-MW-T6 semi-rotary drive
DAPS-0240-090-R-F0710-MW-T6 semi-rotary drive
0 in stock
SKU
MFG 8005016
DAPS-0240-090-R-F0710-MW-T6
MFG 8005016
semi-rotary drive DAPS-0240-090-R-F0710-MW-T6 double-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel and low temperature. Size of actuator=0240. Flange hole pattern=(* F07, * F10), Swivel angle=92 deg, Shaft connection depth=24,8 mm, Fitting connection conforms to standard=ISO 5211
| Size of actuator | 240 |
|---|---|
| Flange hole pattern | (* F07, * F10) |
| Angle of oscillation | 90 deg |
| Shaft connection depth | 24.8 mm |
| Pneumatic connector in accordance with the standards | ISO 5211 |
