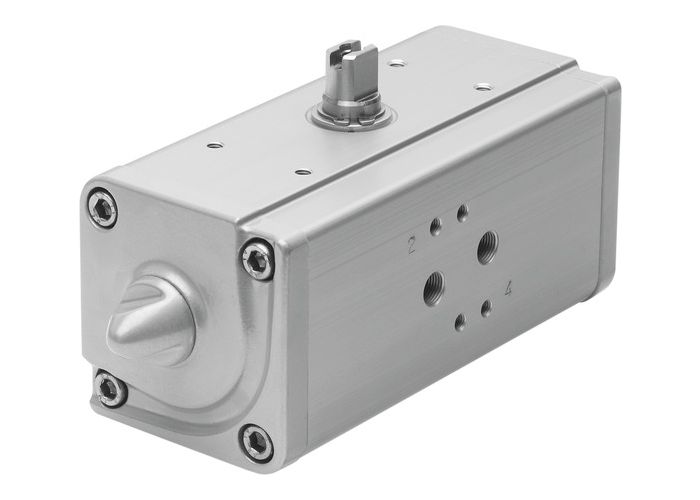

DAPS-0240-090-R-F0710-T4 semi-rotary drive
DAPS-0240-090-R-F0710-T4 semi-rotary drive
0 in stock
SKU
MFG 8030607
DAPS-0240-090-R-F0710-T4
MFG 8030607
semi-rotary drive DAPS-0240-090-R-F0710-T4 double-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, high-temperature version. Size of actuator=0240. Flange hole pattern=(* F07, * F10), Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, Shaft connection depth=24,8 mm
| Size of actuator | 240 |
|---|---|
| Flange hole pattern | (* F07, * F10) |
| Angle of oscillation | 90 deg |
| End-position adjustment range at 0° | -1 - 9 deg |
| Shaft connection depth | 24.8 mm |
