DAPS-0240-090-RS3-F1012-MW semi-rotary drive
DAPS-0240-090-RS3-F1012-MW semi-rotary drive
0 in stock
SKU
MFG 8005044
DAPS-0240-090-RS3-F1012-MW
MFG 8005044

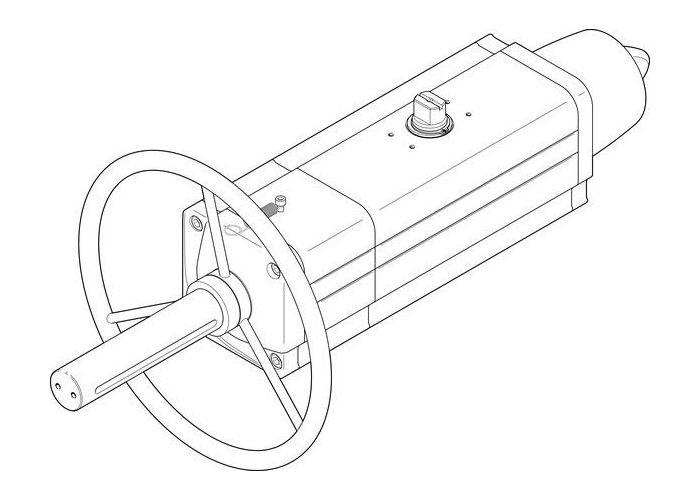

semi-rotary drive DAPS-0240-090-RS3-F1012-MW single-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator=0240. Flange hole pattern=(* F10. * F12), Swivel angle=92 deg, Shaft connection depth=29,5 mm, Note regarding end position setting range=One selectable end position is adjustable
| Size of actuator | 240 |
|---|---|
| Flange hole pattern | (* F10, * F12) |
| Angle of oscillation | 90 deg |
| Shaft connection depth | 29.5 mm |
| Note on the adjustment of the stops | An adjustable stop of your choice is set |
