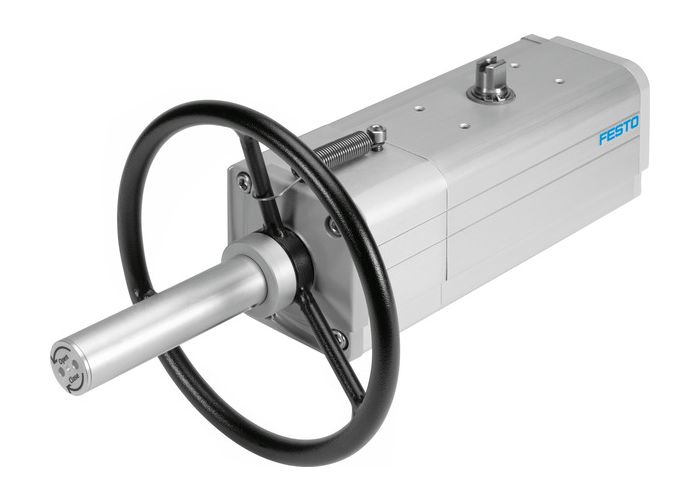

DAPS-0360-090-R-F0710-MW semi-rotary drive
DAPS-0360-090-R-F0710-MW semi-rotary drive
0 in stock
SKU
MFG 8005005
DAPS-0360-090-R-F0710-MW
MFG 8005005
semi-rotary drive DAPS-0360-090-R-F0710-MW double-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator=0360. Flange hole pattern=(* F07, * F10), Swivel angle=92 deg, Shaft connection depth=24,3 mm, Fitting connection conforms to standard=ISO 5211
| Size of actuator | 360 |
|---|---|
| Flange hole pattern | (* F07, * F10) |
| Angle of oscillation | 90 deg |
| Shaft connection depth | 24.3 mm |
| Pneumatic connector in accordance with the standards | ISO 5211 |
