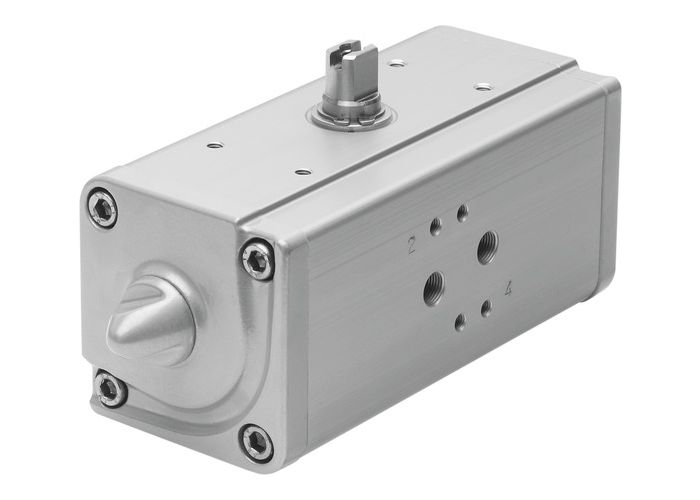

DAPS-0360-090-R-F0710 semi-rotary drive
DAPS-0360-090-R-F0710 semi-rotary drive
0 in stock
SKU
MFG 533423
DAPS-0360-090-R-F0710
MFG 533423
semi-rotary drive DAPS-0360-090-R-F0710 Double-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator=0360. Flange hole pattern=(* F07, * F10), Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, Shaft connection depth=24,3 mm
| Size of actuator | 360 |
|---|---|
| Flange hole pattern | (* F07, * F10) |
| Angle of oscillation | 90 deg |
| End-position adjustment range at 0° | -1 - 9 deg |
| Shaft connection depth | 24.3 mm |
