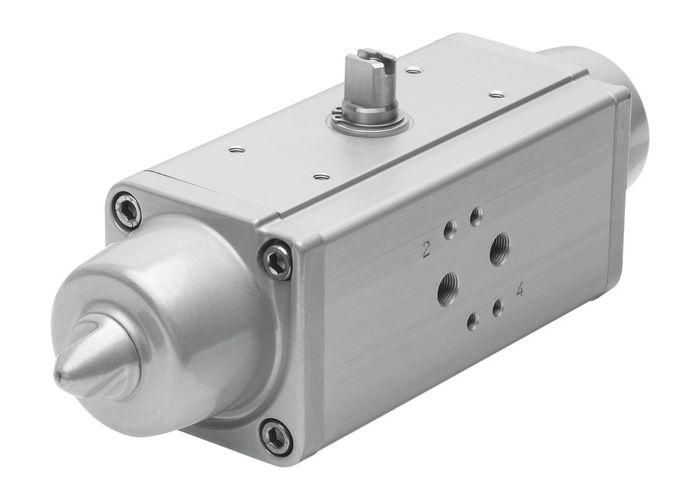

DAPS-0480-090-RS2-F1012 semi-rotary drive
DAPS-0480-090-RS2-F1012 semi-rotary drive
0 in stock
SKU
MFG 533456
DAPS-0480-090-RS2-F1012
MFG 533456
semi-rotary drive DAPS-0480-090-RS2-F1012 Single-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator=0480. Flange hole pattern=(* F10. * F12), Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, End-position adjusting range at nominal swivel angle=81 - 91 deg
| Size of actuator | 480 |
|---|---|
| Flange hole pattern | (* F10, * F12) |
| Angle of oscillation | 90 deg |
| End-position adjustment range at 0° | -1 - 9 deg |
| End-position adjusting range at nominal swivel angle | 81 - 91 deg |
