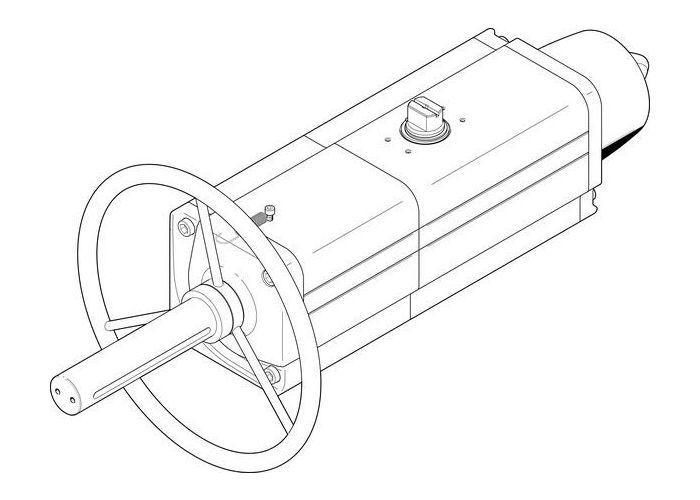

DAPS-0480-090-RS4-F14-MW semi-rotary drive
DAPS-0480-090-RS4-F14-MW semi-rotary drive
0 in stock
SKU
MFG 8005057
DAPS-0480-090-RS4-F14-MW
MFG 8005057
semi-rotary drive DAPS-0480-090-RS4-F14-MW single-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator=0480. Flange hole pattern=F14, Swivel angle=92 deg, Shaft connection depth=38,5 mm, Note regarding end position setting range=One selectable end position is adjustable
| Size of actuator | 480 |
|---|---|
| Flange hole pattern | F14 |
| Angle of oscillation | 92 deg |
| Shaft connection depth | 38.5 mm |
| Note on the adjustment of the stops | An adjustable stop of your choice is set |
