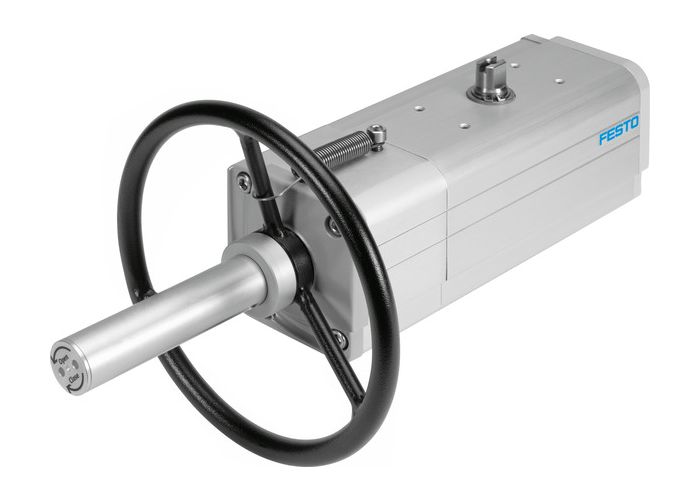

DAPS-0960-090-R-F1012-MW-T6 semi-rotary drive
DAPS-0960-090-R-F1012-MW-T6 semi-rotary drive
0 in stock
SKU
MFG 8005020
DAPS-0960-090-R-F1012-MW-T6
MFG 8005020
semi-rotary drive DAPS-0960-090-R-F1012-MW-T6 double-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel and low temperature. Size of actuator=0960. Flange hole pattern=(* F10. * F12), Swivel angle=92 deg, Shaft connection depth=38,5 mm, Fitting connection conforms to standard=ISO 5211
| Size of actuator | 960 |
|---|---|
| Flange hole pattern | (* F10, * F12) |
| Angle of oscillation | 90 deg |
| Shaft connection depth | 38.5 mm |
| Pneumatic connector in accordance with the standards | ISO 5211 |
