DAPS-0960-090-RS1-F14 semi-rotary drive
DAPS-0960-090-RS1-F14 semi-rotary drive
0 in stock
SKU
MFG 533459
DAPS-0960-090-RS1-F14
MFG 533459

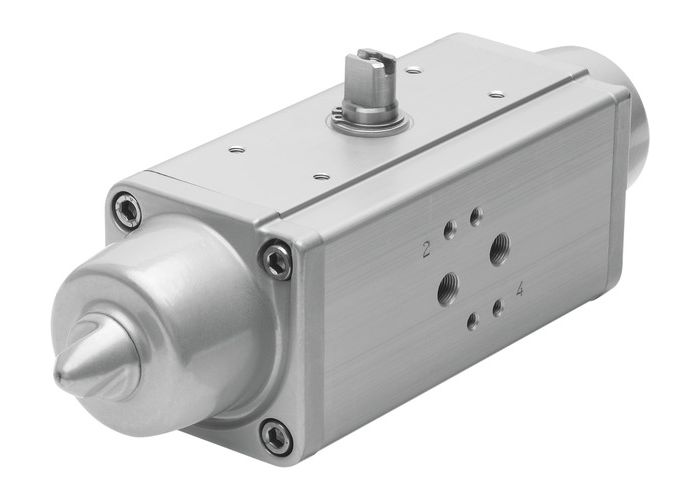

semi-rotary drive DAPS-0960-090-RS1-F14 Single-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator=0960. Flange hole pattern=F14, Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, End-position adjusting range at nominal swivel angle=81 - 91 deg
| Size of actuator | 960 |
|---|---|
| Flange hole pattern | F14 |
| Angle of oscillation | 90 deg |
| End-position adjustment range at 0° | -1 - 9 deg |
| End-position adjusting range at nominal swivel angle | 81 - 91 deg |
