DAPS-0960-090-RS2-F14-MW semi-rotary drive
DAPS-0960-090-RS2-F14-MW semi-rotary drive
0 in stock
SKU
MFG 8005068
DAPS-0960-090-RS2-F14-MW
MFG 8005068

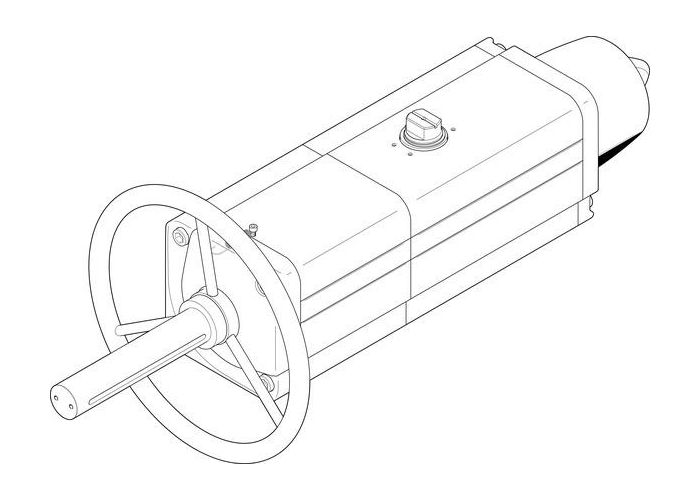

semi-rotary drive DAPS-0960-090-RS2-F14-MW single-acting, air connection to VDI/VDE 3845 Namur valves, direct flange mounting, version with handwheel. Size of actuator=0960. Flange hole pattern=F14, Swivel angle=92 deg, Shaft connection depth=48,5 mm, Note regarding end position setting range=One selectable end position is adjustable
| Size of actuator | 960 |
|---|---|
| Flange hole pattern | F14 |
| Angle of oscillation | 92 deg |
| Shaft connection depth | 48.5 mm |
| Note on the adjustment of the stops | An adjustable stop of your choice is set |
