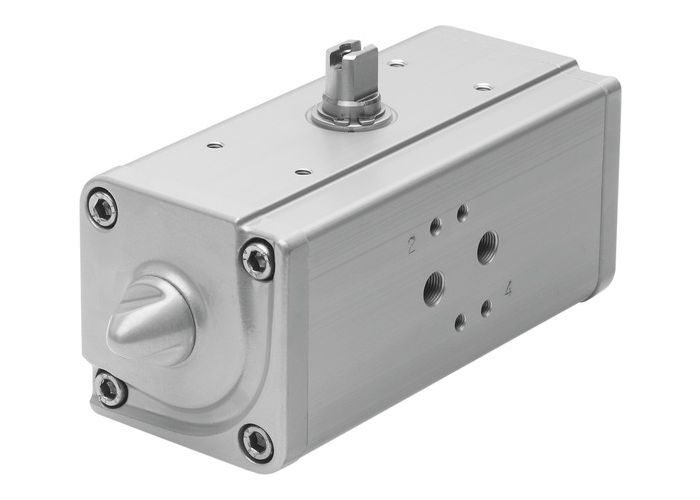

DAPS-1440-090-R-F12 semi-rotary drive
DAPS-1440-090-R-F12 semi-rotary drive
0 in stock
SKU
MFG 549668
DAPS-1440-090-R-F12
MFG 549668
semi-rotary drive DAPS-1440-090-R-F12 Double-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator=1440. Flange hole pattern=F12, Swivel angle=90 deg, End-position adjustment range at 0°=-1 - 9 deg, Shaft connection depth=38,5 mm
| Size of actuator | 1440 |
|---|---|
| Flange hole pattern | F12 |
| Angle of oscillation | 90 deg |
| End-position adjustment range at 0° | -1 - 9 deg |
| Shaft connection depth | 38.5 mm |
