DFPD-20-RP-90-RS60-F03-R3-EP semi-rotary drive
DFPD-20-RP-90-RS60-F03-R3-EP semi-rotary drive
0 in stock
SKU
MFG 8047647
DFPD-20-RP-90-RS60-F03-R3-EP
MFG 8047647

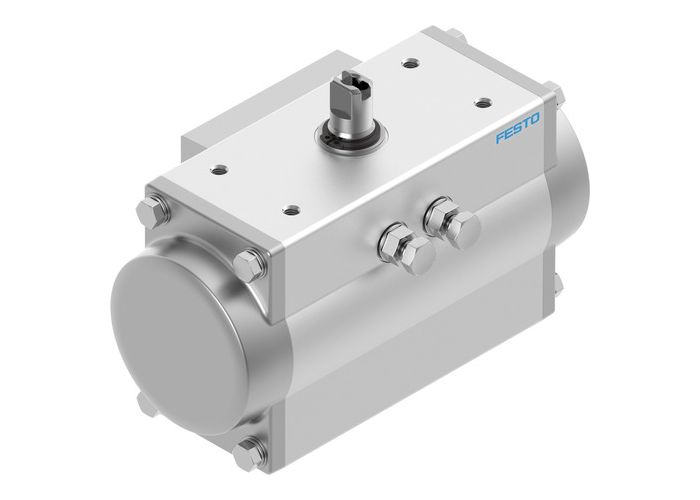

semi-rotary drive DFPD-20-RP-90-RS60-F03-R3-EP single-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to process valve fitting ISO 5211, epoxy coating, stainless steel shaft. Size of actuator=20. Flange hole pattern=F03, Swivel angle=90 deg, End-position adjustment range at 0°=-5 - 5 deg, End-position adjusting range at nominal swivel angle=-5 - 5 deg
| Size of actuator | 20 |
|---|---|
| Flange hole pattern | F03 |
| Angle of oscillation | 90 deg |
| End-position adjustment range at 0° | -5 - 5 deg |
| End-position adjusting range at nominal swivel angle | -5 - 5 deg |
