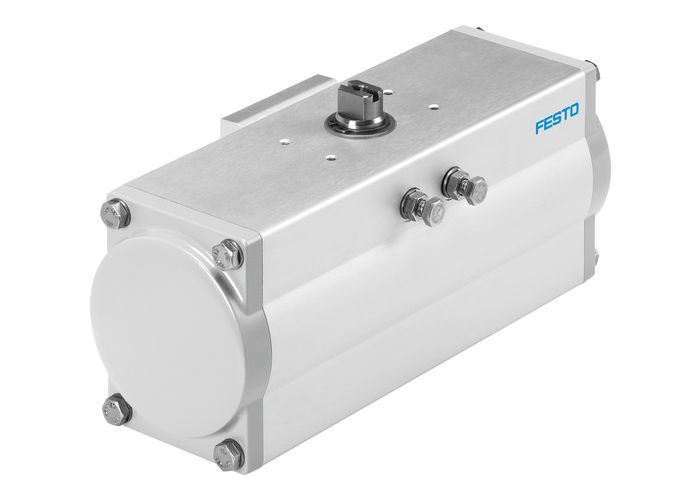

DFPD-40-RP-135-RD-F0507 semi-rotary drive
DFPD-40-RP-135-RD-F0507 semi-rotary drive
0 in stock
SKU
MFG 8065337
DFPD-40-RP-135-RD-F0507
MFG 8065337
semi-rotary drive DFPD-40-RP-135-RD-F0507 double-acting, rack and pinion engineering design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to process valve fitting ISO 5211. Size of actuator=40. Flange hole pattern=F0507, Swivel angle=135 deg, End-position adjustment range at 0°=-5 - 5 deg, End-position adjusting range at nominal swivel angle=-5 - 5 deg
| Size of actuator | 40 |
|---|---|
| Flange hole pattern | F0507 |
| Angle of oscillation | 135 deg |
| End-position adjustment range at 0° | -5 - 5 deg |
| End-position adjusting range at nominal swivel angle | -5 - 5 deg |
