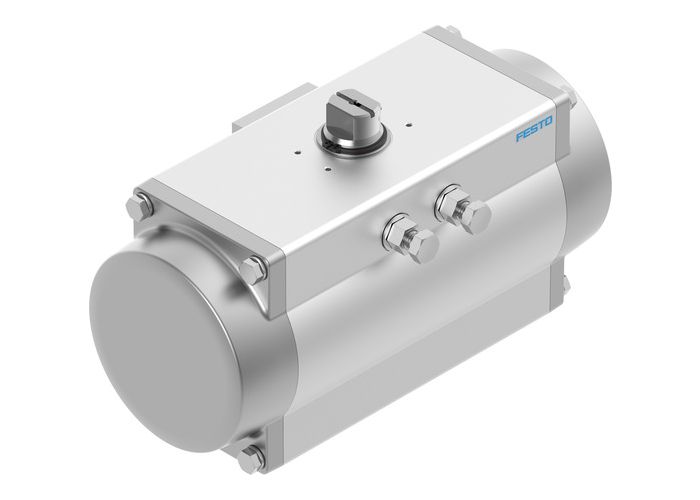

DFPD-700-RP-90-RS60-F1012-R3-EP semi-rotary drive
DFPD-700-RP-90-RS60-F1012-R3-EP semi-rotary drive
0 in stock
SKU
MFG 8065264
DFPD-700-RP-90-RS60-F1012-R3-EP
MFG 8065264
semi-rotary drive DFPD-700-RP-90-RS60-F1012-R3-EP single-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to process valve fitting ISO 5211, epoxy coating, stainless steel shaft. Size of actuator=700. Flange hole pattern=F1012, Swivel angle=90 deg, End-position adjustment range at 0°=-5 - 5 deg, End-position adjusting range at nominal swivel angle=-5 - 5 deg
| Size of actuator | 700 |
|---|---|
| Flange hole pattern | F1012 |
| Angle of oscillation | 90 deg |
| End-position adjustment range at 0° | -5 - 5 deg |
| End-position adjusting range at nominal swivel angle | -5 - 5 deg |
