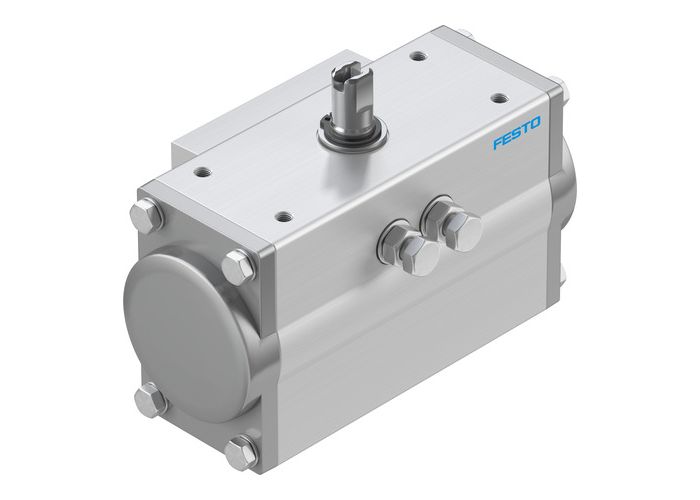

DFPD-N-10-RP-90-RD-F04 semi-rotary drive

semi-rotary drive DFPD-N-10-RP-90-RD-F04 double-acting, rack and pinion design, connection pattern to NAMUR VDI/VDE 3845 for mounting solenoid valves, position sensors and positioners, standard connection to fitting ISO 5211, NPT control air connection thread type. Size of actuator=10. Flange hole pattern=F04, Swivel angle=90 deg, End-position adjustment range at 0°=-5 - 5 deg, End-position adjusting range at nominal swivel angle=-5 - 5 deg
