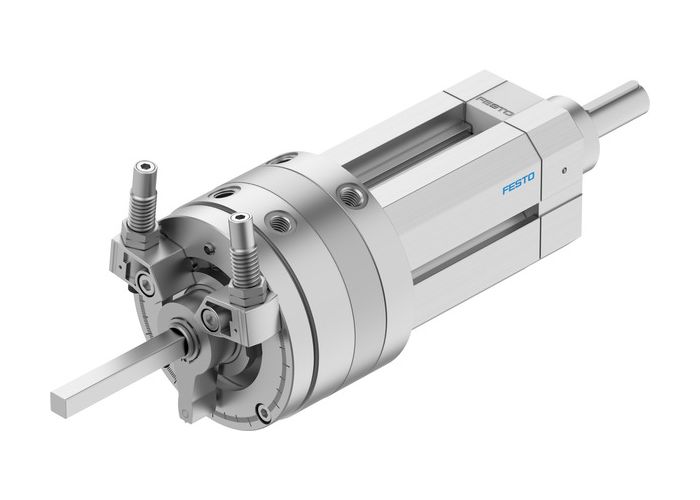

DSL-32-50-270-CC-A-S2-B swivel/linear unit
DSL-32-50-270-CC-A-S2-B swivel/linear unit
0 in stock
SKU
MFG 556511
DSL-32-50-270-CC-A-S2-B
MFG 556511
swivel/linear unit DSL-32-50-270-CC-A-S2-B For proximity sensing. Rotary and linear movement can be actuated independently of one another. Rotary movement of 0° - 270° infinitely adjustable. Cushioning angle=12 deg, Rotation angle adjustment range=0 - 246 deg, Stroke=50 mm, Piston diameter=32 mm, Swivel angle=0 - 246 deg
| Stroke | 50 mm |
|---|---|
| Piston diameter | 32 mm |
| Angle of oscillation | 0 - 246 deg |
| Cushioning angle | 12 deg |
| Rotation angle adjustment range | 0 - 246 deg |
