LCNH-M5-PK-2 barbed L-fitting
LCNH-M5-PK-2 barbed L-fitting
0 in stock
SKU
MFG 35982
LCNH-M5-PK-2
MFG 35982

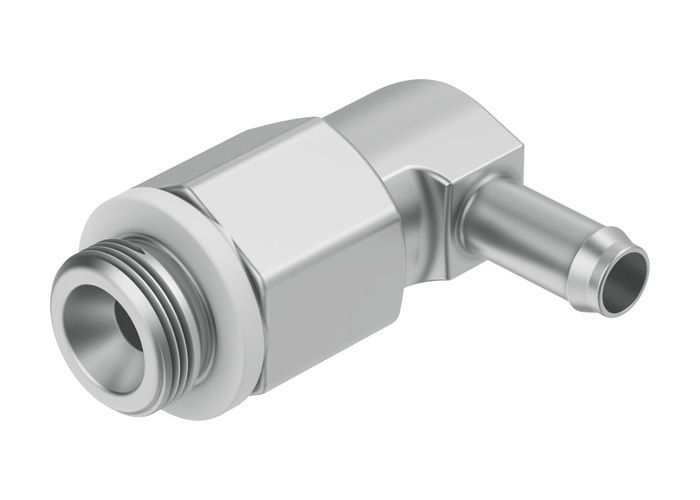

barbed L-fitting LCNH-M5-PK-2 Rotatable, with extended housing, for plastic tubing PAN, PUN, PP, PU, PR, with sealing ring. Nominal size=1,3 mm, Type of seal on screw-in stud=Sealing ring, Operating pressure complete temperature range=-0.95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Type of seal on thread | Sealing ring |
|---|---|
| Assembly position | Any |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Operating pressure for entire temperature range | -0.95 - 10 bar |
| Permissible voltage fluctuation | +/- 10 % |
