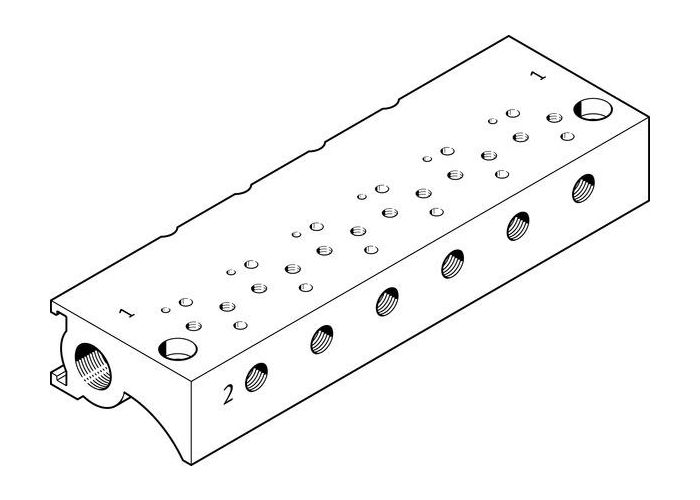

MHA1-P2-2-M3 manifold block
MHA1-P2-2-M3 manifold block
0 in stock
SKU
MFG 197207
MHA1-P2-2-M3
MFG 197207
manifold block MHA1-P2-2-M3 for manifold block valves MHA1-...-HC/TC Max. number of valve positions=2, Operating pressure=0 - 8 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Corrosion resistance classification CRC=1 - Low corrosion stress
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
|---|---|
| Service pressure | 0 - 8 bar |
| Corrosion resistance class KBK | 1 - Low corrosion effects |
| Max. number of valve positions | 2 |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
