MSB4N-1/4:C3J2-WP service unit combination
MSB4N-1/4:C3J2-WP service unit combination
0 in stock
SKU
MFG 543559
MSB4N-1/4:C3J2-WP
MFG 543559

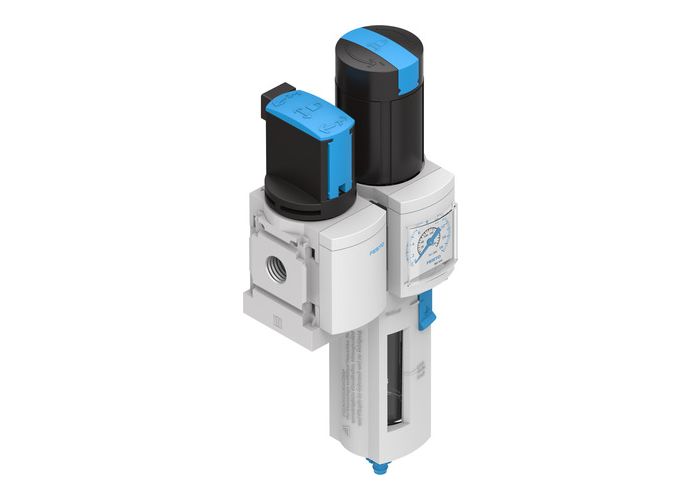

service unit combination MSB4N-1/4:C3J2-WP Comprising manual on-off valve, filter regulator, wall mounting plate. Maximum output pressure 12 bar, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size=4, Series=MS, Actuator lock=Rotary knob with integrated lock, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | 4 |
|---|---|
| Assembly position | Vertical +/- 5° |
| Series | MS |
| Actuator lock | Rotary knob with integrated lock |
| Grade of filtration | 5 µm |
