MSB4N-1/4:C3J4-WP service unit combination
MSB4N-1/4:C3J4-WP service unit combination
0 in stock
SKU
MFG 543571
MSB4N-1/4:C3J4-WP
MFG 543571

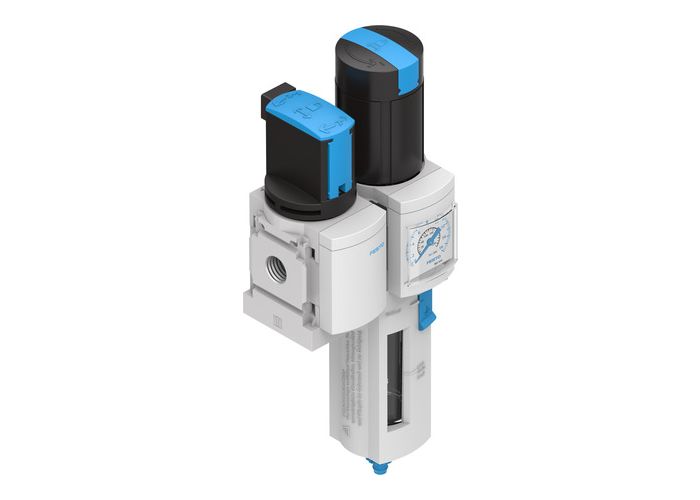

service unit combination MSB4N-1/4:C3J4-WP Comprising manual on-off valve, filter regulator, wall mounting plate. Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size=4, Series=MS, Actuator lock=Rotary knob with integrated lock, Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| Size | 4 |
|---|---|
| Assembly position | Vertical +/- 5° |
| Series | MS |
| Actuator lock | Rotary knob with integrated lock |
| Grade of filtration | 40 µm |
