MSB4N-1/4:J1D1A1-WP service unit combination
MSB4N-1/4:J1D1A1-WP service unit combination
0 in stock
SKU
MFG 541435
MSB4N-1/4:J1D1A1-WP
MFG 541435

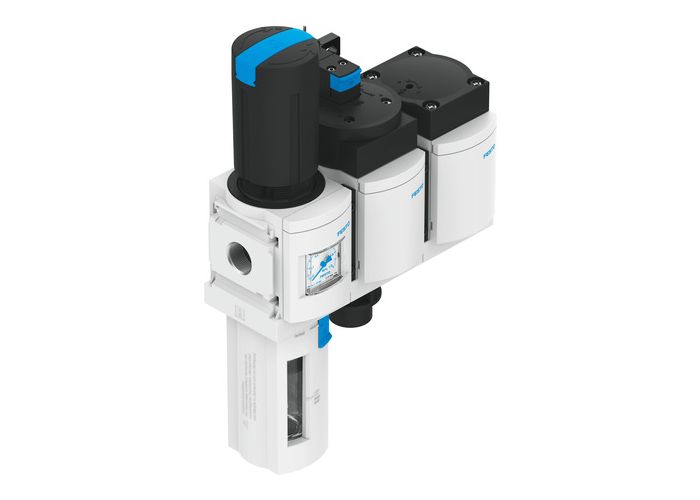

service unit combination MSB4N-1/4:J1D1A1-WP Consisting of filter regulator, electrical on-off valve, pneumatic soft-start valve and wall mounting plate. 12 bar maximum output pressure, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size=4, Series=MS, Actuator lock=Rotary knob with integrated lock, Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | 4 |
|---|---|
| Assembly position | Vertical +/- 5° |
| Series | MS |
| Actuator lock | Rotary knob with integrated lock |
| Grade of filtration | 5 µm |
