MSB6N-1/2:C3J2M1-WP service unit combination
MSB6N-1/2:C3J2M1-WP service unit combination
0 in stock
SKU
MFG 543582
MSB6N-1/2:C3J2M1-WP
MFG 543582

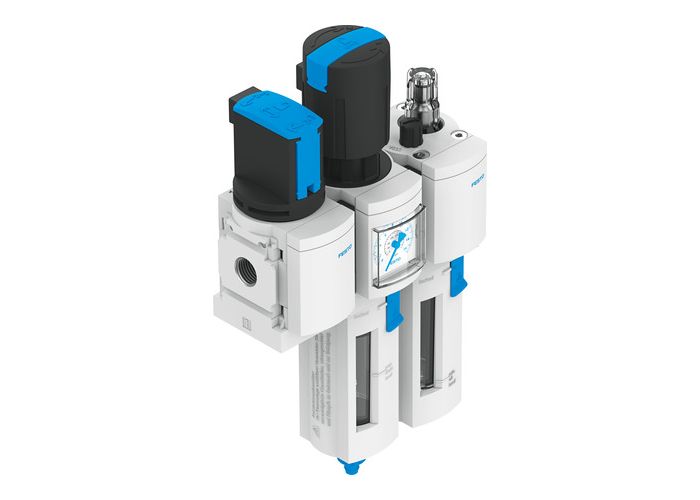

service unit combination MSB6N-1/2:C3J2M1-WP Comprising manual on-off valve, filter regulator, lubricator, wall mounting plate. Maximum output pressure 12 bar, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=40 µm
| Size | 6 |
|---|---|
| Assembly position | Vertical +/- 5° |
| Series | MS |
| Actuator lock | (* Rotary knob with lock, * with accessories, lockable) |
| Grade of filtration | 5 µm |
