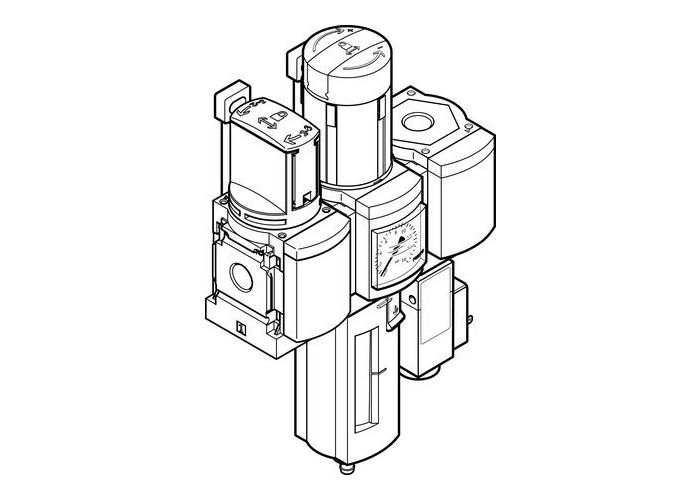

MSB6N-1/2:C3J3F3-WP service unit combination
MSB6N-1/2:C3J3F3-WP service unit combination
0 in stock
SKU
MFG 543586
MSB6N-1/2:C3J3F3-WP
MFG 543586
service unit combination MSB6N-1/2:C3J3F3-WP Consisting of manual on-off valve, filter/regulator, branching module with pressure switch but without display, wall mounting plate Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic basket guard, manual condensate drain, flow direction from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=5 µm
| Size | 6 |
|---|---|
| Assembly position | Vertical +/- 5° |
| Series | MS |
| Actuator lock | (* Rotary knob with lock, * with accessories, lockable) |
| Grade of filtration | 5 µm |
