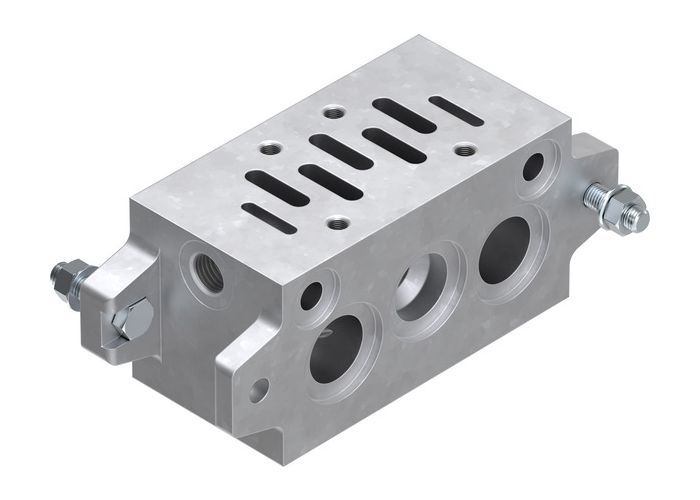

NAV-1/4-NPT-1C manifold sub-base
NAV-1/4-NPT-1C manifold sub-base
0 in stock
SKU
MFG 13998
NAV-1/4-NPT-1C
MFG 13998
manifold sub-base NAV-1/4-NPT-1C With port pattern as per DIN ISO 5599/1, for manifold assembly, connections underneath. Width=110 mm, Operating pressure=16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Medium temperature=-10 - 60 °C
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
|---|---|
| Width | 110 mm |
| Service pressure | 16 bar |
| Medium temperature | -10 - 60 °C |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
