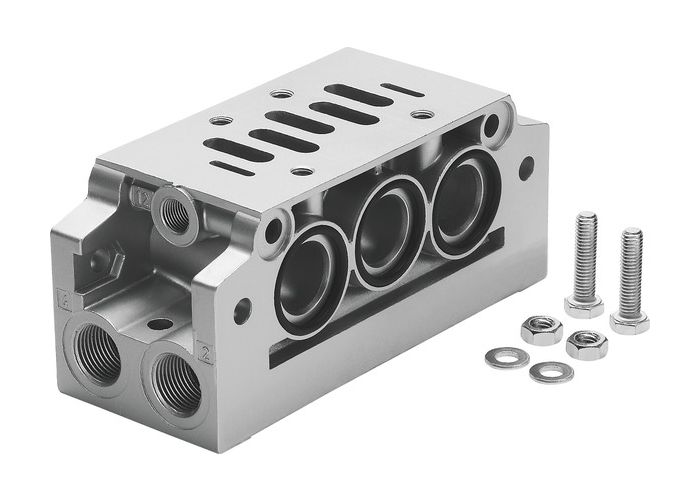

NAVW-1/2-NPT-3 manifold sub-base with 90° connections
NAVW-1/2-NPT-3 manifold sub-base with 90° connections
0 in stock
SKU
MFG 152794
NAVW-1/2-NPT-3
MFG 152794
manifold sub-base with 90° connections NAVW-1/2-NPT-3 With port pattern as per DIN ISO 5599/1, for manifold assembly, connections at side and underneath. Width=190 mm, Operating pressure=0 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Medium temperature=-10 - 60 °C, Ambient temperature=-10 - 60 °C
| Ambient temperature | -10 - 60 °C |
|---|---|
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Width | 190 mm |
| Service pressure | 0 - 16 bar |
| Medium temperature | -10 - 60 °C |
