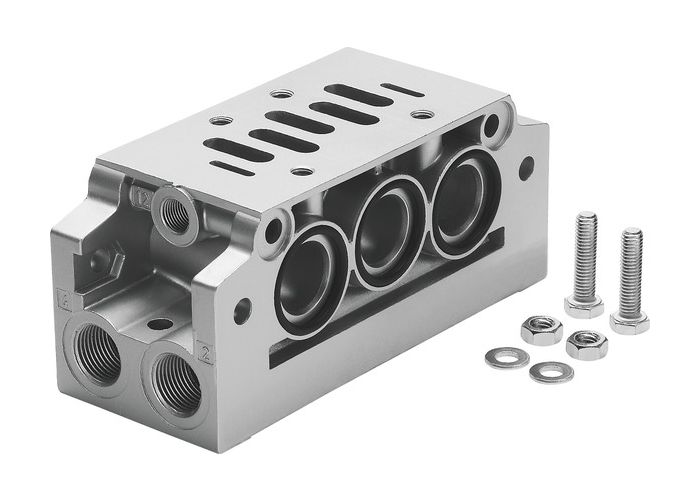

NAVW-3/8-NPT-2 manifold sub-base with 90° connections
NAVW-3/8-NPT-2 manifold sub-base with 90° connections
0 in stock
SKU
MFG 152793
NAVW-3/8-NPT-2
MFG 152793
manifold sub-base with 90° connections NAVW-3/8-NPT-2 With port pattern as per DIN ISO 5599/1, for manifold assembly, connections at side and underneath. Width=135 mm, Operating pressure=0 - 16 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Medium temperature=-10 - 60 °C, Ambient temperature=-10 - 60 °C
| Ambient temperature | -10 - 60 °C |
|---|---|
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Width | 135 mm |
| Service pressure | 0 - 16 bar |
| Medium temperature | -10 - 60 °C |
