SCN-PK-2 barbed bulkhead fitting
SCN-PK-2 barbed bulkhead fitting
0 in stock
SKU
MFG 19528
SCN-PK-2
MFG 19528

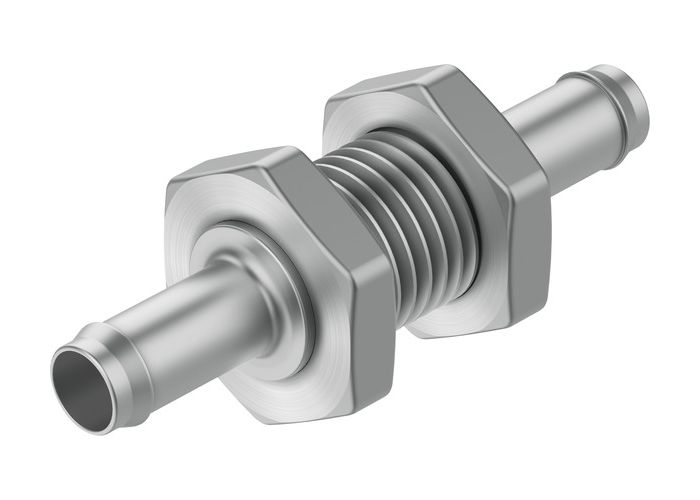

barbed bulkhead fitting SCN-PK-2 For plastic tubing PAN, PUN, PL, PP, PU. Nominal size=1,5 mm, Operating pressure complete temperature range=-0.95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Ambient temperature=0 - 60 °C
| Ambient temperature | 0 - 60 °C |
|---|---|
| Nominal Diameter | 1.5 mm |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Operating pressure for entire temperature range | -0.95 - 10 bar |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
